JMHI-100/200 Analog MEMS Inclinometer Series
Highlights

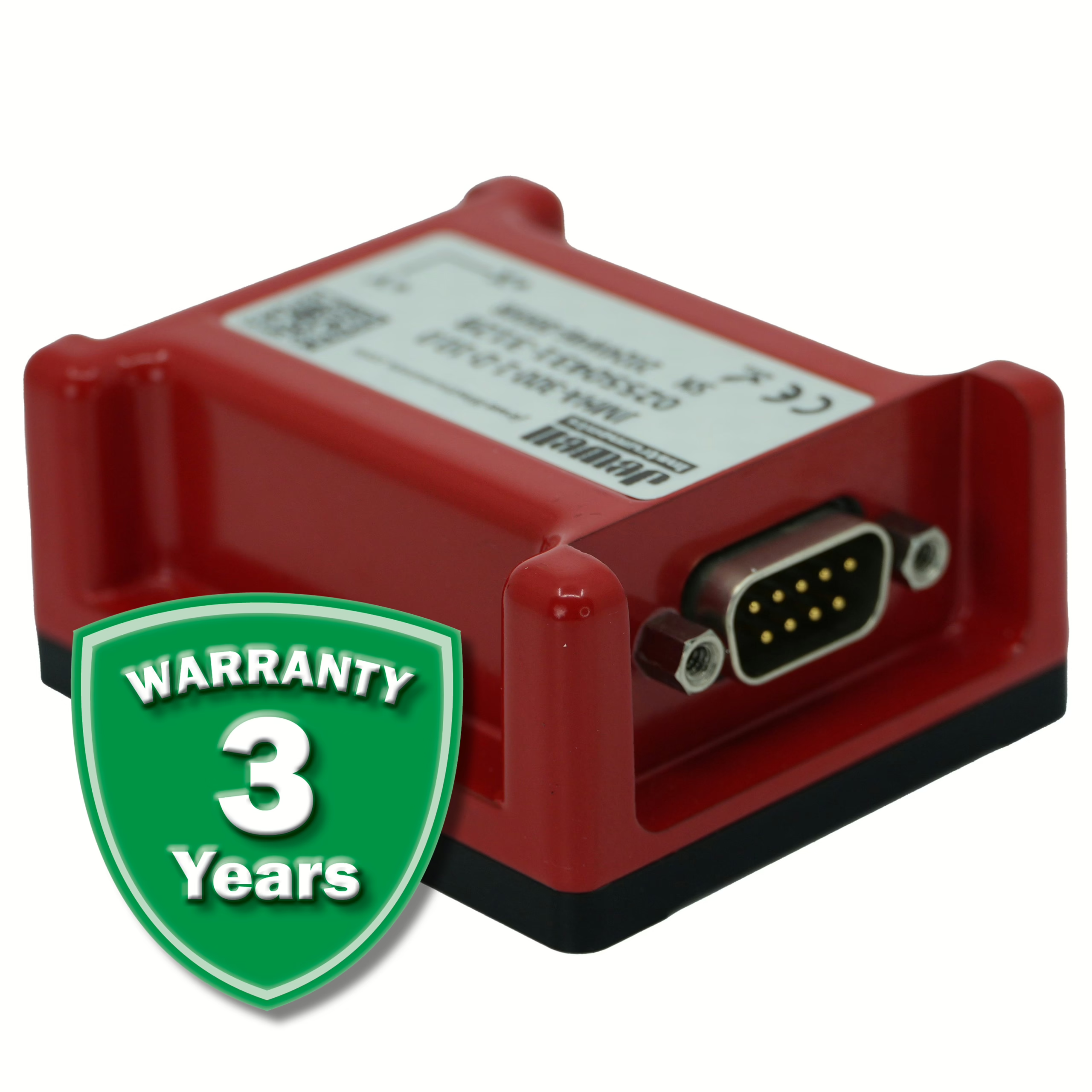

The NEW Ruby MEMS inclinometers represent the next generation of high-performance inertial sensors from Jewell Instruments. With an improved Price-Performance, the new Ruby inertial sensors offer improved resolution, faster frequency response, and wider bandwidth — all in a IP67 package that utilizes the same mounting configuration of Jewell’s current MEMS sensors.
Jewell has over 40 years history manufacturing force-balanced sensors and please to provide low-cost high-precision MEMS parts with the same attention to detail that our customers demand.
Additional Information
| Dimensions | 2.25 × 2.25 × 1.99 in |
|---|---|
| Features | •Ranges: ±14.5° to ±90° •Output Signal Options: ±5V, 4-20mA, or 0-5V •Resolution: 0.002° •Output Noise: down to 0.00125 Vrms •Operating Temp Range: -40° to +85°C •Seal: IP67 •M12 and DB9 termination options •RoHS compliant |
| Applications | • Radar & Antenna Position Control • Mining • Bridge and Structural Monitoring • Platform Leveling • Tunneling Biaxial Machine Tool Levelling • Construction • Offshore Platform Stability • Production/Manufacturing Process • Geotechnical Monitoring • Industrial Measurement & Control |
Performance Specifications
Static/Dynamic
| Measurement Range1 (°) |
±14.5 | ±30 | ±60 | ±90 |
| Output Voltage Range (VDC) | ±5 | ±5 | ±5 | ±5 |
| Scale Factor Temp. Coefficient (PPM/°C max) | 150 | 150 | 150 | 150 |
| 0° Output Temp. Sensitivity (V/°C max) | ±0.0025 | ±0.00125 | ±0.00072 | ±0.000625 |
| Transverse Axis Misalignment (° max) |
±0.15 | ±0.15 | ±0.15 | ±0.15 |
| Resolution (° max) | 0.002 | 0.002 | 0.002 | 0.002 |
| Non-linearity (% FRO max) |
0.06 | 0.06 | 0.06 | 0.06 |
| Nonrepeatability, Hysteresis (° max) | 0.004 | 0.004 | 0.004 | 0.004 |
| Bandwidth (Hz nom) (-3 dB) |
5 | 5 | 5 | 5 |
| Voltage to Radian conversion2 | Asin(( – 2.5)/10) | Asin(( – 2.5)/5) | Asin((-2.5)/2.8868) | Asin(( – 2.5)/2.5) |
Electrical and Environmental
| Number of Axes | 1, 2, |
| Input Voltage Range (VDC) | ±8 to ±18 |
| Input Current (mA max) |
22 |
| Output Impedance (Ω, nom) |
<1 |
| Operating Temp. Range (°C) | -40 to +85 |
| Storage Temp. Range (°C) |
-40 to +95 |
| Seal | IP67 |
*Specifications subject to change without notice on account of continued product development.
