Sensor and signal connection

D-SubHD-15 connector kit (male)

The kit includes a 15-pin SubHD plug, a metalized plastic housing with knurled screws for fixing the plug at the device, a TEDS chip (1-wire) for storage of a sensor data sheet for automatic channel parameterization, as well as an adhesive label.

Article no.: 1-SUBHD15-MALE

BNC-to-SubHD-15 adapter

The BNC-to-SubHD adapter can be used to connect IEPE/ICP sensors or ±10V signals with a BNC connector to QuantumX amplifier.

Article no.: 1-SUBHD15-BNC

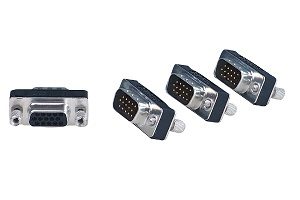

4 x D-SubHD-15 port saver

Port savers can extend the sensors’ contact durability by at least 500 mating cycles and protect the investment in your device.

Article no.: 1-SUBHD15-SAVE

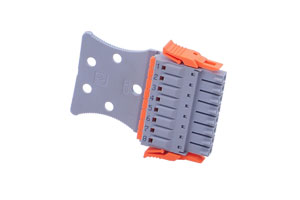

10 x push-in connector (8 pins, gold)

Push-in connectors with a fastening clip, for ex. for QuantumX MX1601B/MX1615B.

Article no.: 1-CON-S1015

10 x TEDS chip

TEDS chip for storage of a sensor data sheet for automatic channel parameterization, also (1-wire-EEPROM, IEEE 1451.4, Type: DS24B33).

Article no.: 1-TEDS-PAK

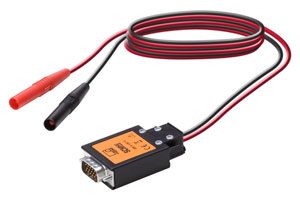

300V-to-D-SubHD-15 adapter

The adapter enables electric voltages up to 300V (CAT II) or up to 500V (non-CAT) to be reliably measured using a QuantumX universal amplifier. The adapter is identified by the amplifier and automatically configures the channel.

Article no.: 1-SCM-HV

Strain gauge quarter bridge-to-D-SubHD-15 adapter

The adapter allows measurements with single strain gauges (SG) in a quarter-bridge circuit and 3-wire configuration.

The adapter completes the connected strain gauge with 3 precise resistors to form a full bridge. The available adapter variants are suitable for 120, 350, 700, or 1000-ohm strain gauges and can be connected to any QuantumX amplifier with a full-bridge input and SubHD socket.

The required parameters such as bridge and gauge factor, bridge excitation, physical unit and calibration data are directly stored on the adapter in the TEDS via software.

Article no.:

1-SCM-SG120
1-SCM-SG350
1-SCM-SG700
1-SCM-SG1000

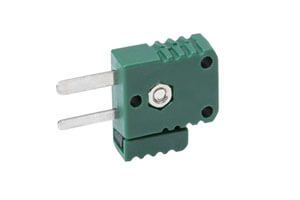

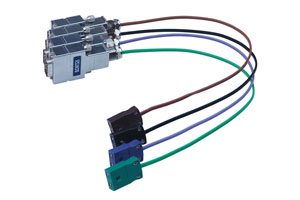

Thermo-Mini Type K, E, J, or T-to-D-SubHD-15 adapter

The adapter can be used to connect thermocouples with thermo-Mini connectors. The SubHD connector comes with an integrated cold junction (THERMO-MXBOARD).

The available adapter variants are suitable for type K, E, J, or T thermocouples and can be connected to MX840 and MX440 universal amplifiers and their successor models.

Article no.:

1-SCM-TCK
1-SCM-TCE
1-SCM-TCJ
1-SCM-TCT

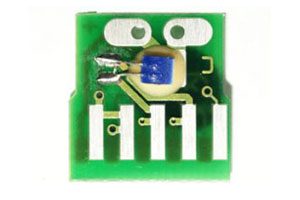

Thermocouple cold junction

The plug-in cold junction can be used for measurements with thermocouples with the MX840 or MX440 universal amplifiers. The board must be installed in the SubHD-15 plug and consists of a cold junction (Pt100) and a 1-wire TEDS chip for transducer identification.

Article no.: 1-THERMO-MXBOARD

10 x Mini thermocouple plug with RFID

The thermo-Mini plug enables a thermocouple to be connected. The plug provides an integrated RFID chip (read/write) which can, for ex., send the measuring point name to the MX1609 amplifier and automatically parameterize the channel (TEDS).

The available plug variants are suitable for type K and T thermocouples and can be connected to MX1609KB or MX1609TB QuantumX amplifiers.

Article no.:

1-THERMO-MINI
1-THERMO-MINI-T

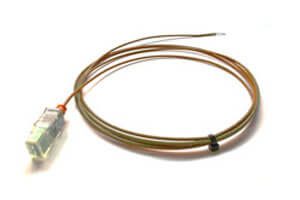

Type K thermocouple for MX809B

The type K thermocouple is suitable for reliable temperature measurement using the QuantumX MX809B in electrical environments (drives, inverters, cables, batteries).

The thermocouple is spot-welded. It is safe due to a double-insulated and protected 3-m-long cable as well as the insulating cap that protects the Thermo Mini type K from shock and fire. The thermocouple has been certified by VDE according to EN 61010.

Article no.: 1-ITC-K1000

Voltage measuring lead for MX809B

The measuring lead can be used for the reliable measurement of low voltages up to 5V at a high electric potential using the QuantumX MX809B in electrical environments such as batteries.

The lead has free ends. It is safe due to a double-insulated and protected 3-m-long cable as well as the insulating cap that protects the Thermo Mini type copper from shock and fire. The measuring lead has been certified by VDE according to EN 61010.

Article no.: 1-ITC-U1001

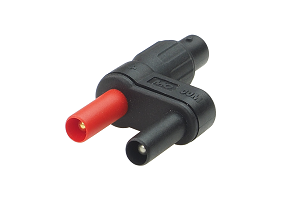

6 x BNC-to-safety lab socket (banana)

The adapter enables, for ex., the connection of current clamps with a BNC plug to 4-mm-safety lab sockets (banana).

Article no.: 1-G067-2

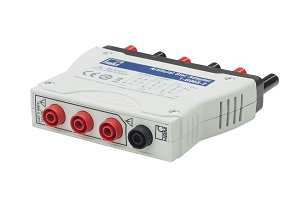

Artificial 3-phase star-point adapter

This adapter is intended for measurement on an electric drive in 3-phase mode and provides an artificial star point for measuring the phase voltages with QuantumX MX403B or GENESIS.

Connection to the drive by safety lab leads.

Article no.: 1-G068-2

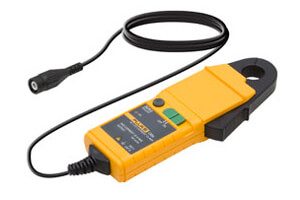

AC/DC current probe i30s

The AC/DC current probe measures based on the Hall effect. It is connected by a 2-m-long cable and a BNC connector. The current probe requires a 9-V block battery. A BNC-to-safety lab socket adapter is included.

Currents that can be measured: 30mA – 30A DC; 30mA – 20A AC eff; DC -100kHz.

Article no.: 1-G912-2

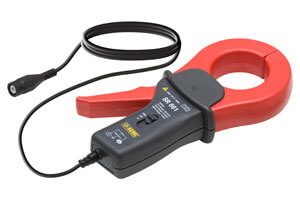

AC current probe SR661

The AC current probe measures inductively. It is connected by a 2-m-long cable with a BNC connector. A BNC-to-safety lab socket adapter is included.

Currents that can be measured: 100mA – 1200A AC eff; 1Hz-100kHz.

Article no.: 1-G913-2

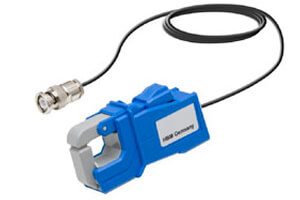

High-accuracy AC current probe M1V20-2

The high-accuracy AC current probe measures inductively. It is connected by a 2-m-long cable with a BNC connector. A BNC-to-safety lab socket adapter is included.

Currents that can be measured: 50mA – 20A AC; 30Hz – 40kHz.

Article no.: 1-G914-2

System connection

Ethernet crossover cable

The Ethernet crossover cable (CAT5+, 2m) allows the direct connection of modules or measuring instruments to the PC.

Article no.: 1-KAB239-2

FireWire cable for module-to-module connection

The cable connects two QuantumX/SomatXR modules (ODU==ODU): Power supply routing (max. 1.5A), time synchronization, real time, data.

Article no.:

1-KAB272-0.2
1-KAB272-2
1-KAB272-5

Power supply

AC-DC power supply unit 24V

The AC-DC power supply unit supplies measuring instruments with 24V DC voltage.

AC: 100-240V ~ (international AC plugs, 1.5m)

24V DC, 30W (ODU, 2m).

Article no.: 1-NTX001

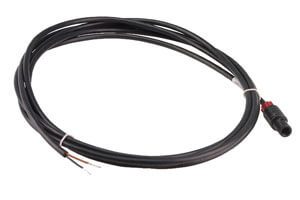

Cable for voltage supply of module(s)

Cable for voltage supply of modules

(ODU=== open strands, 3m).

Article no.: 1-KAB271-3

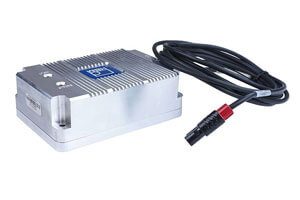

QuantumX Uninterruptible Power Supply (UPS)

The module guarantees an uninterruptible power supply (UPS), for ex., for buffering power drops of up to 80s in a broad temperature range (-40…80°C).

Article no.: 1-UPX001-2

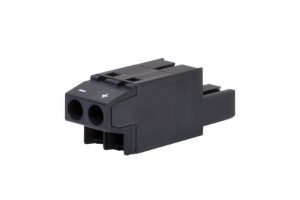

Screw terminal for backplane (BPX)

The screw terminal allows the voltage supply of backplanes with 24V.

Article no.: 1-CON-S1010

Mechanical integration

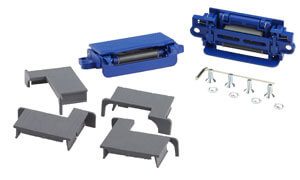

QuantumX clip connectors

Clip connectors for fast mounting of QuantumX on top of or next to each other.

Article no.: 1-CASECLIP

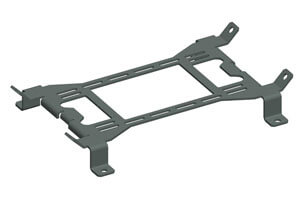

QuantumX fitting panel

Fitting panel for mounting of QuantumX modules using case clips or a lashing strap. Basic fastening by 4 screws.

Article no.: 1-CASEFIT

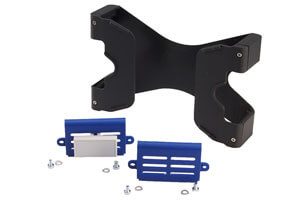

QuantumX protective X frame

Black protection frame for QuantumX functioning as a stacking aid.

Article no.: 1-CASEPROT

QuantumX wall-mount backplane

Backplane for integrating max. 9 QuantumX modules. Additional modules can be connected by FireWire. Backplane for wall or control-cabinet mounting. Power supply: 24V DC / max. 5A (150W)

Note: The package does not include an AC/DC power adapter.

Article no.: 1-BPX001

QuantumX backplane – rack

Backplane for integrating max. 9 QuantumX modules. Additional modules can be connected by FireWire. Backplane for wall or control-cabinet mounting. Power supply: 24V DC / max. 5A (150W)

Note: The package does not include an AC/DC power adapter.

Article no.: 1-BPX002



Software:

CATman EASY

Software package for easy measurement data acquisition.

The CATman EASY main features include convenient channel parameterization using TEDS or the integrated sensor database, measurement job parameterization, individual visualizations, data analysis and event and alarm handling, data storage and export in different formats, e.g. ASCII, Excel, DIAdem, MDF 3/4, or MATLAB.

Installation requires Windows 7/8 or 10. Software maintenance for the first 12 months is included in the package. We recommend an annual renewal.

CATman AP

The CATman AP main features include

CATman EASY + multi recorder, integration of cameras (EASY VideoCam), online + post-process analysis (EASYMath), automation of recurrent activities (EASYScript), offline preparation of measurement projects (EASYPlan), additional functions like electric power library, special filters, frequency spectrum, etc. Additional data processing and reporting.



LabVIEW™ driver

HBM’s LabVIEW™ driver supports QuantumX, SomatXR, and MGCplus.

LabVIEW™ 2012 or higher is required. Installation requires Windows 7/8 or 10. Software maintenance for the first 12 months is included in the package.

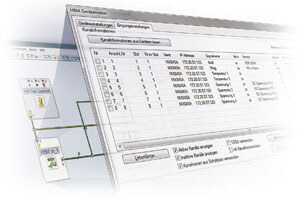

DIAdem™ driver (in German only)

HBM’s DIAdem™ driver supports QuantumX, SomatXR, and MGCplus.

DIAdem™ 10.1 or higher is required. Installation requires Windows 7/8 or 10. Software maintenance for the first 12 months is included in the package.



CANape driver

The CANape driver supports QuantumX and SomatXR.

CANape 10.0 or higher is required. Installation requires Windows 7/8 or 10. Software maintenance for the first 12 months is included in the package.

Note: The CAN function of MX471 or MX840 and their successor models is not supported.
