Miniature
LBMP Overload Protected Compression Load Button
Model LBMP is stainless steel overload protected compression load button. This product is available in capacities ranging from 0.01kN to 100kN (2.25 lbf to 22.5K lbf).
- Capacities from 0.01 kN to 100 kN (2.25 lbf to 22.5K lbf)
- Overload protected
- Temperature compensated
- Small diameter
- Environmentally sealed
- Stainless steel

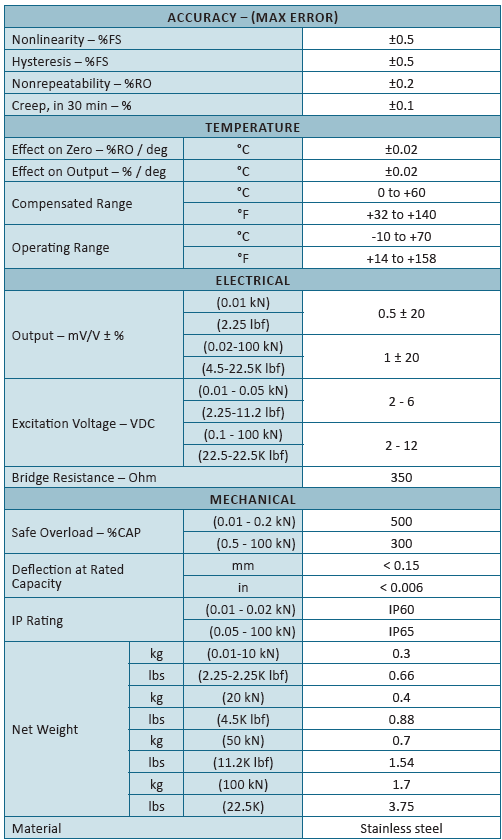

SPECIFICATIONS

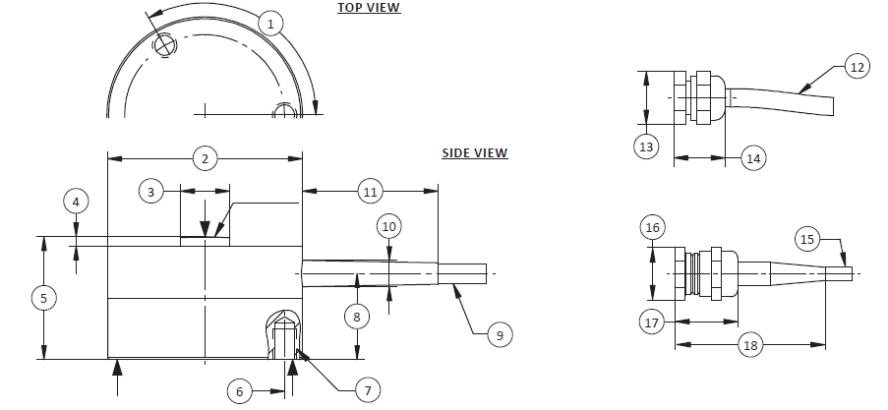

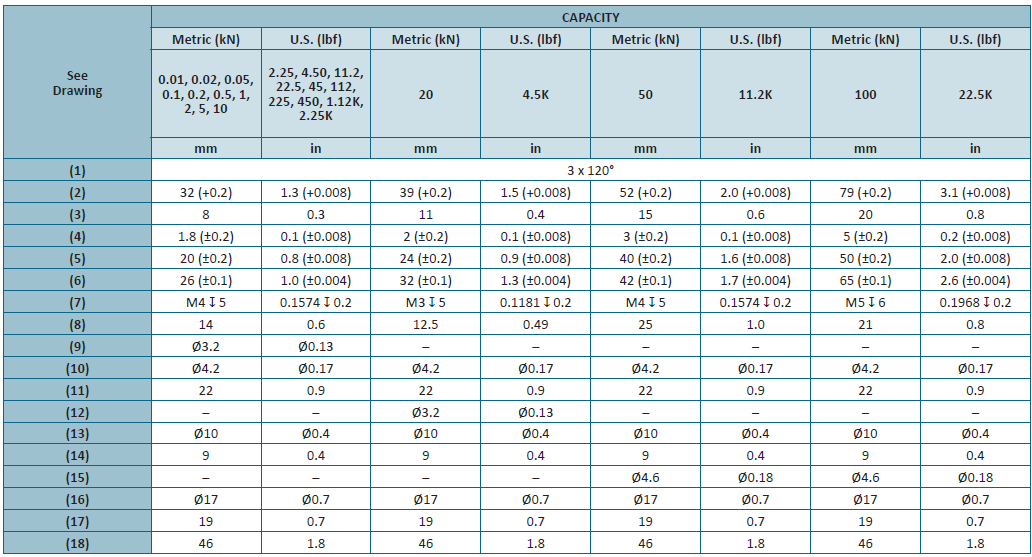

DIMENSIONS
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
