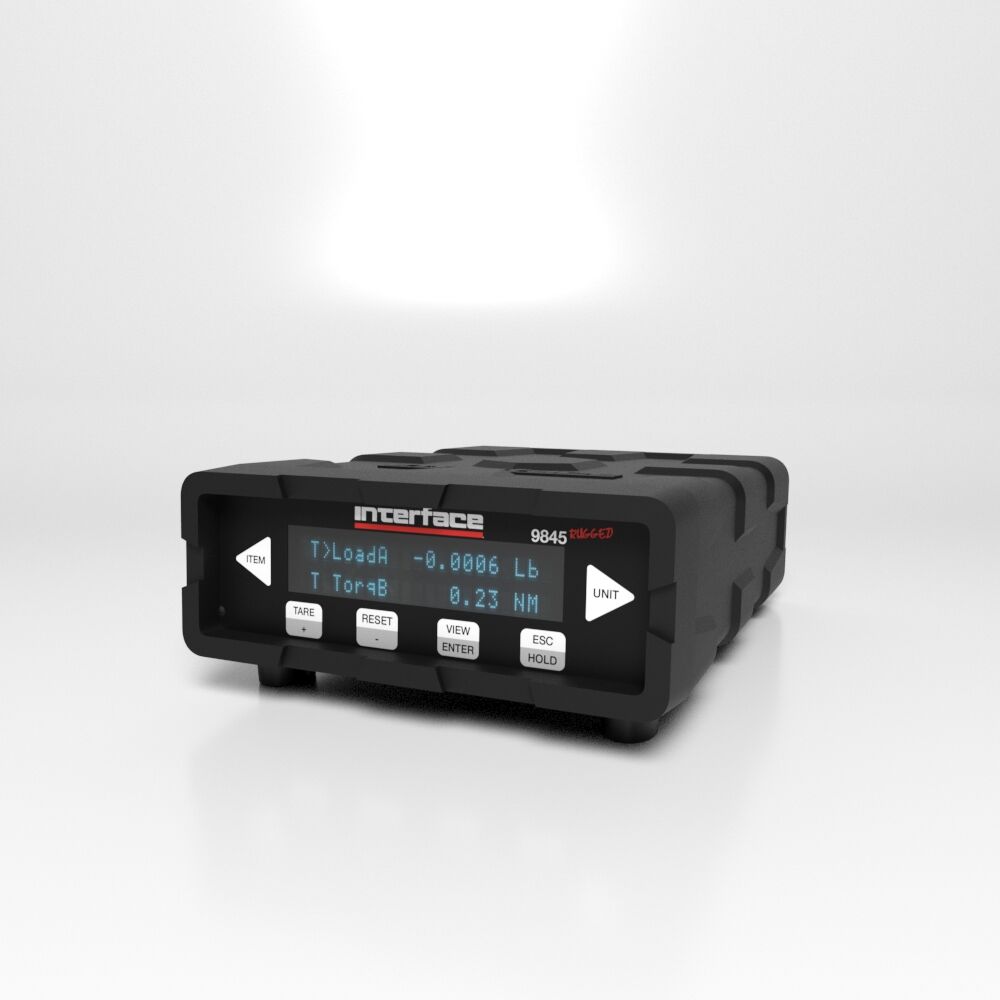

The Model 9845 Rugged Calibration Grade Load Cell Indicator delivers high accuracy for calibration labs, field service, and industrial use. It features a bipolar 6-digit, two-line display, 24-bit resolution, remote sense excitation, and low-noise circuitry. Standard features include TEDS Plug & Play (IEEE 1451.4), mV/V calibration, 5- & 6-point linearization, auto setup for multiple sensors, ±10 VDC analog output, and unit conversion across multiple engineering units. Options include a second channel, 4–20 mA output, RS485, multi-drop RS232, and quadrature encoder support—making the 9845 a compact, flexible, and reliable tool for precision measurement.

Features & Benefits:

• TEDS Plugs & Play Ready IEEE 1451.4 compliant
• 1 or 2 channel
• Remote sense excitation
• 5 & 6 point linearization
• Bipolar
• ±999,999 display counts
• Nonlinearity < ±0.005%
• Auto setup for multiple load cells
• Fast, direct analog output
• ±10 VDC scalable analog output – 16 bit
• Full duplex RS232C communication
• Peak/valley hold with front panel reset
• Front panel and remote tare
• 8 selectable digital filters
• Auto zero
• Front panel shunt calibration with two selectable resistors
• Display units conversion: Lb, Kg, N, Psi, Mpa, Klb, kN, t, mV/V, lbf-in, oz-in, Nm
• Two-line display
• Quadrature encoder channel available
• mV/V calibration
• USB port
• Low noise circuitry
• Faster processor speed
• TEDS read/write template 33, 40, 41
• Display Freeze/Remote Display Freeze
• 10 segment polynomial linearization
• Front Panel access to data streaming
• External power adapter
• 100VAC – 240VAC external power supply included
• Detachable US power cord included

Options:

• Mechanical power readout
• Temperature thermocouple channel for temperature readout
• Enhanced processor facilitates custom factory programmed math function calculations
• 2nd channel
• 2nd 16-bit scalable analog output
• 4-20 mA analog output
• Quad Limits
• RS485
• Multi-drop RS232
• Encoder Channel
• Keylock
• International power cord
